2008-2015 Mitsubishi Evo X MAPerformance Large Capacity Oil Pan

2008-2015 Mitsubishi Evo X MAPerformance Large Capacity Oil Pan

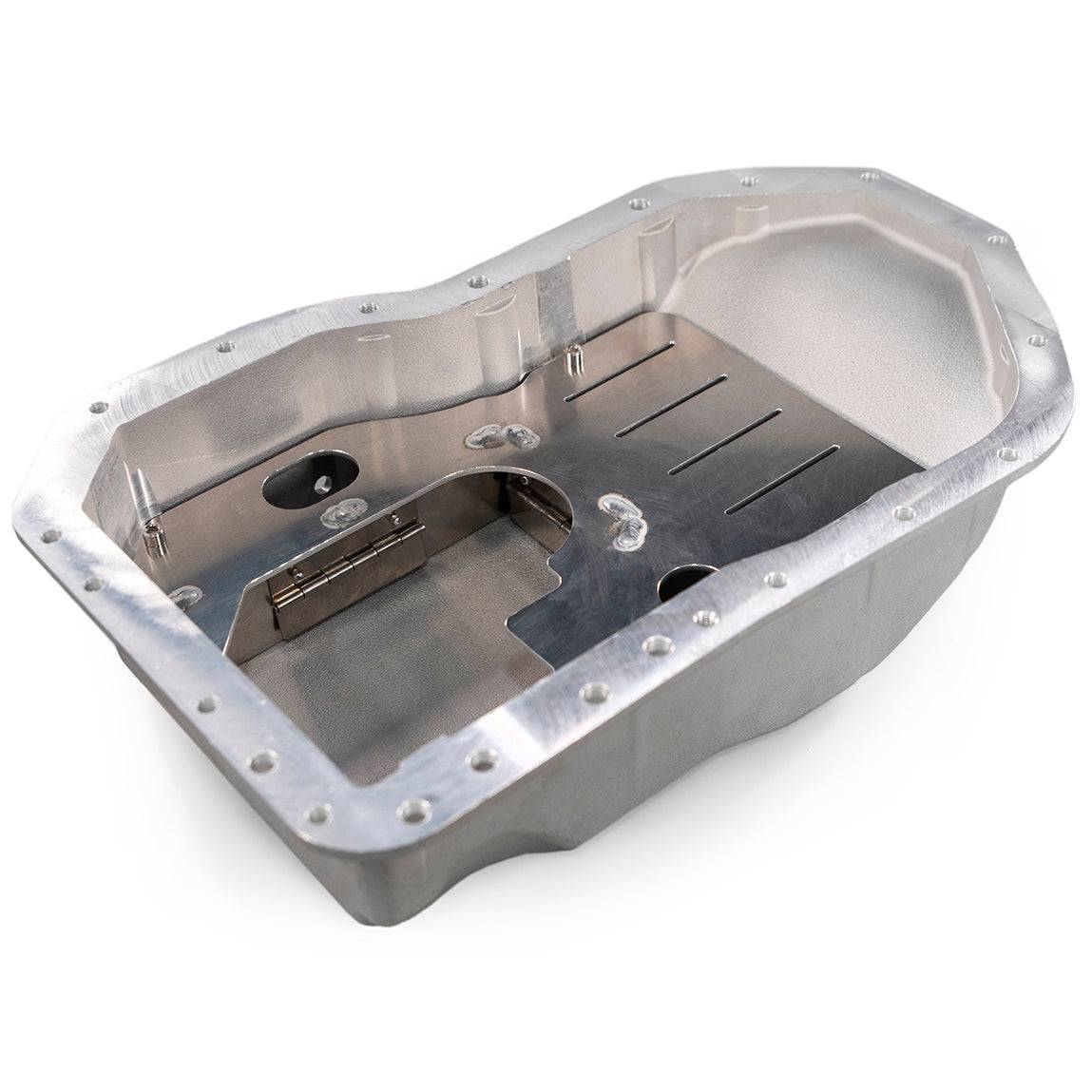

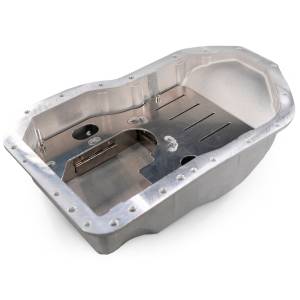

The MAPerformance Large Capacity Oil Pan for the Evo X features a race-proven removable anti-slosh baffle assembly. This keeps oil contained in the oil pump pickup area during spirited driving and holds 6 quarts of oil, and 1 additional quart from stock. The included A/C bracket gives the option to stay cool and comfortable with factory HVAC system. Also included is a built-in 1/8th inch NPT bung for easy temperature sensor installation. The thickened aluminum construction also aids in the removal process of the pan while also improving temperature dispersion and mitigates heat soaking.

Features:

• Increased Oil Capacity 6 Quarts Total
• Improved and Removable Baffle Design
• Cast Aluminum Oil Pan
• 1/8th Inch NPT Bung
• M8x1.25 Threaded Holes
• Stainless Steel Hardware

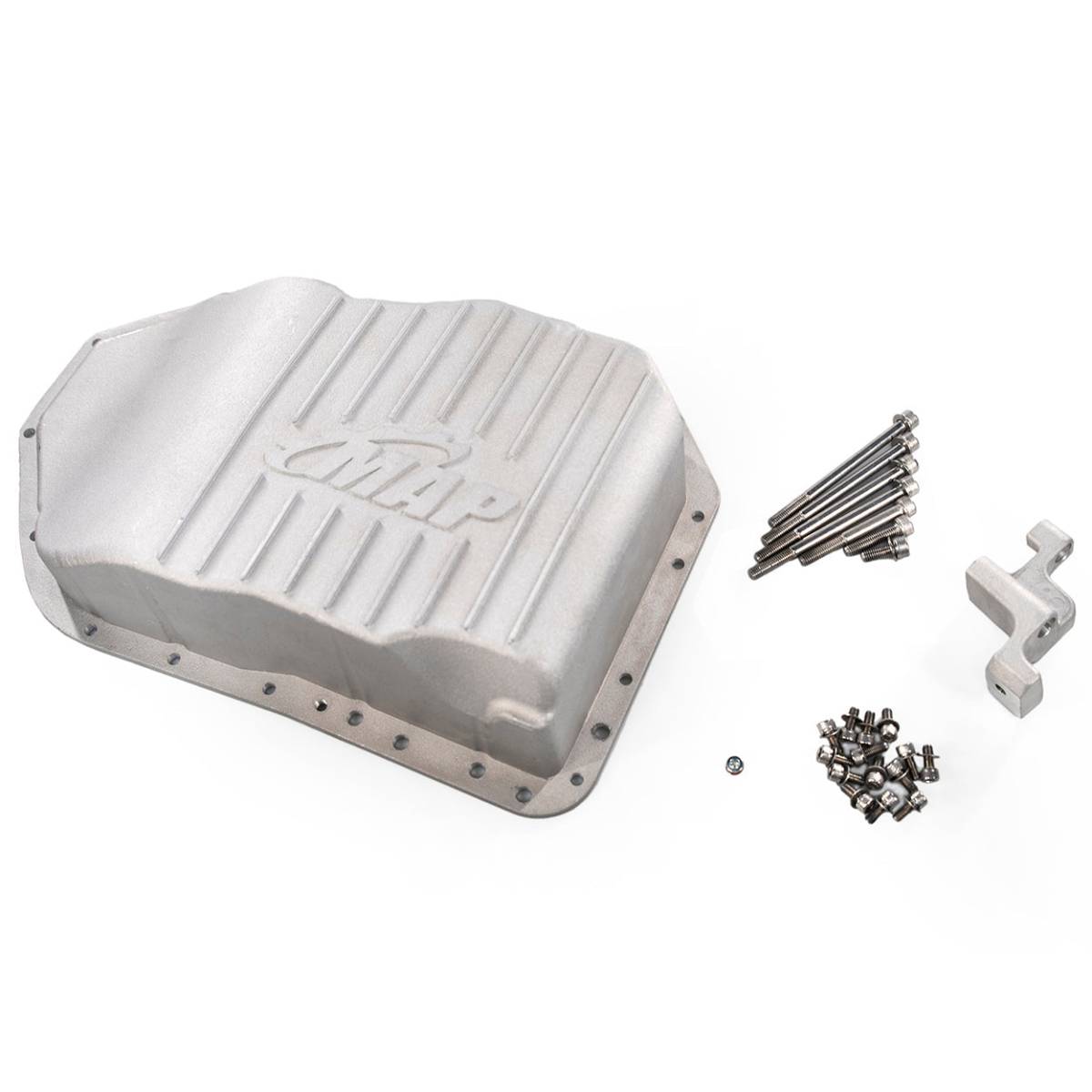

Includes:

• 1 - MAP EvoX Oil Pan - Assembled

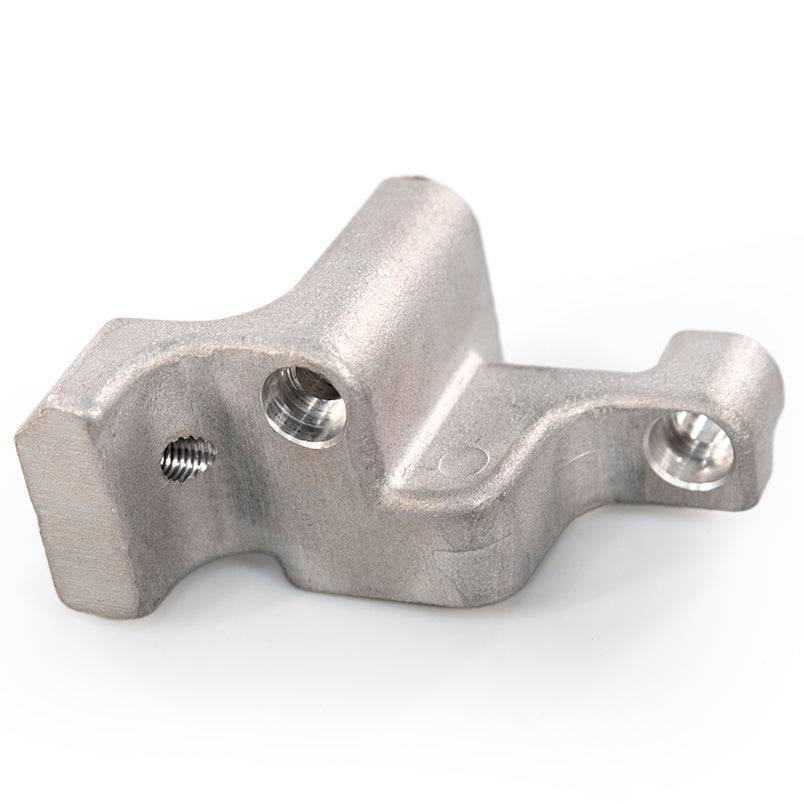

• 1 - MAP EvoX AC Bracket
• 15 - M6 Bolts 16mm Length, 1mm Pitch
• 15 - M6 Washers
• 5 - M8 Washers
• 4 - M8 Bolts 110mm Length, 1.25mm Pitch
• 1 - M8 Bolt 70 mm Long, 1.25 mm Thread
• 1 - M8 Bolt 35mm Length, 1.25 mm Thread
• 1 - M8 Bolts 20mm Length, 1.25mm Pitch
• 1 - 1/8" NPT Plug
