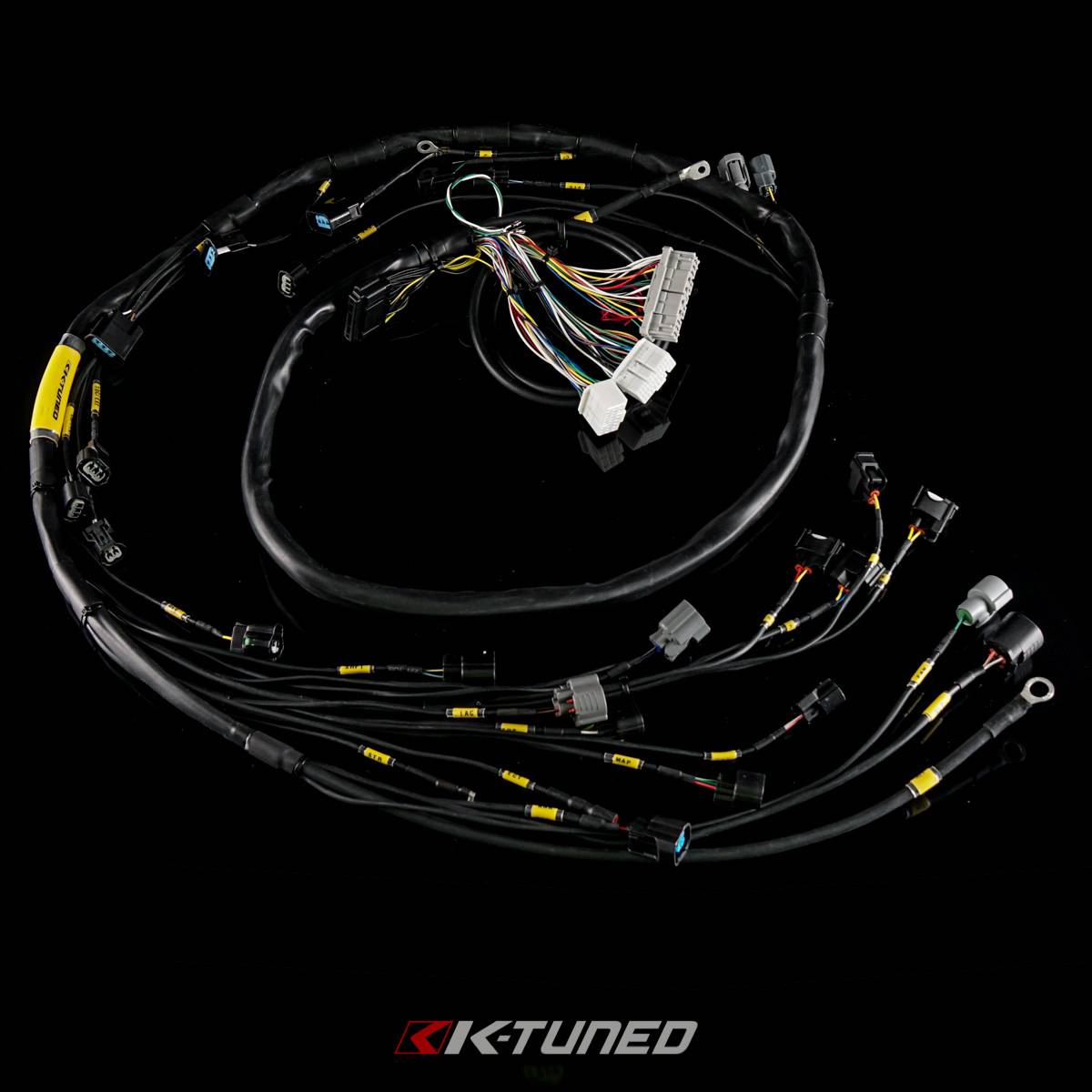

K-Tuned Race-Grade with Reychem K-Series Tucked Engine Harness w/Integrated power wire - w/RSX Injector Clips

K-Tuned Race-Grade with Reychem K-Series Tucked Engine Harness w/Integrated power wire - w/RSX Injector Clips

Features:

• All plugs included except EVAP and AC
• Covering is gas and diesel resistant and rated for -55° C to 150° C (-67° F to 320° F)
• SAE Certified Automotive Grade Wiring

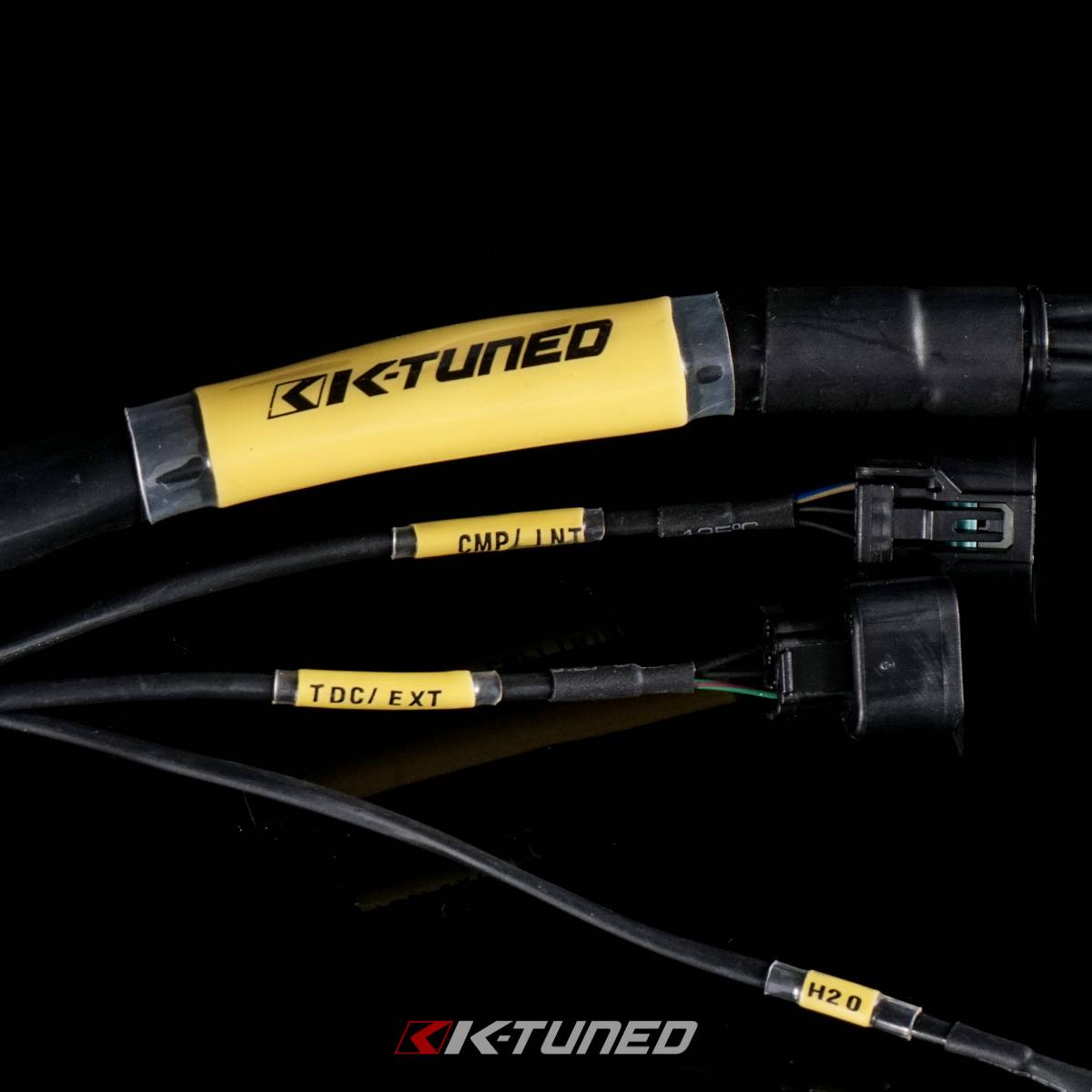

• All plugs are labeled
• Tucked design
• Harness runs over valve cover (Can be covered with coil pack cover)
• Integrated power wire and charge harness. Works with fuse box in stock location or relocated under dash.
• Injector wiring runs from under manifold between middle runners.
• Ground wire relocated to stud under coil pack cover (instead of front of the valve cover)

• Includes single wire temp sensor wire (For k-swap cars stock cluster)
• 3 Aux wires run from ECU to under intake manifold. Two ECU pins pre-installed.
• Wiring long enough for both VSS low frequency or high frequency (High Frequency transmissions will require repining plug and slight modification to VSS)
• Extra knock sensor plug included.
• Each harness is inspected and tested before shipping.
• RSX injectors plugs come standard (RDX injectors can be easily switched)
