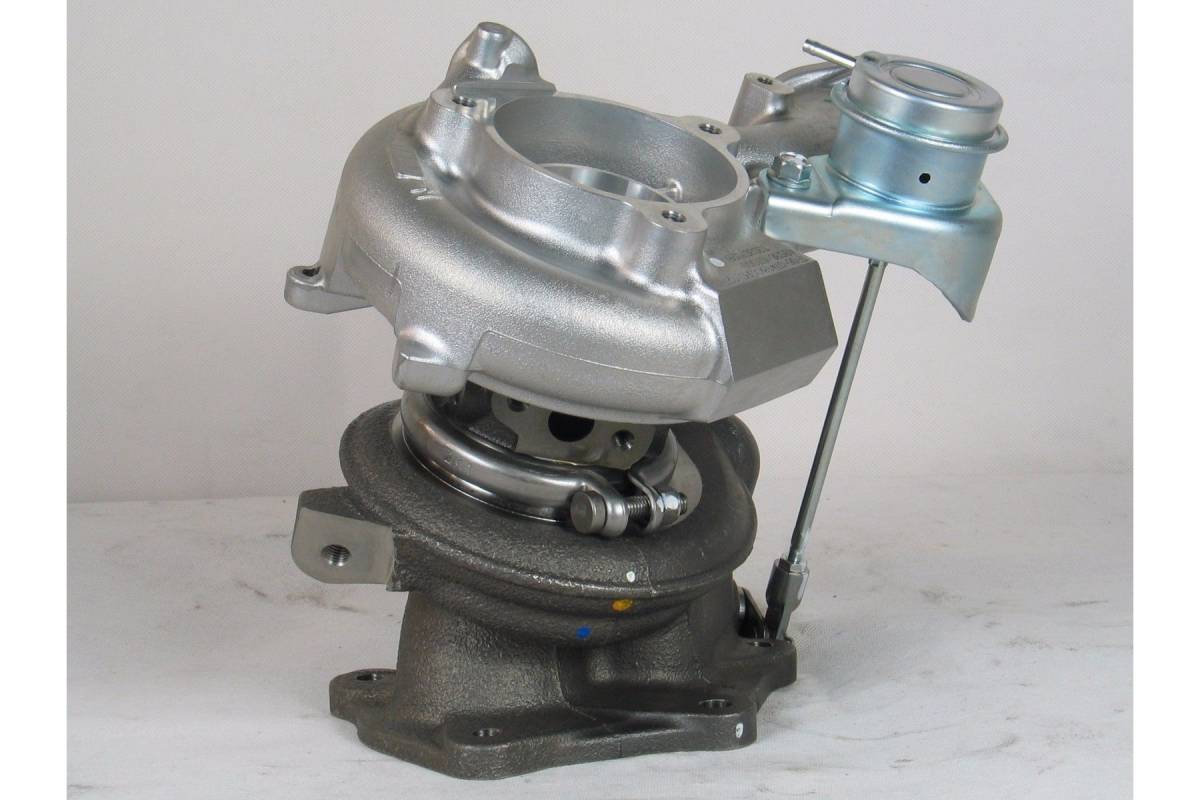

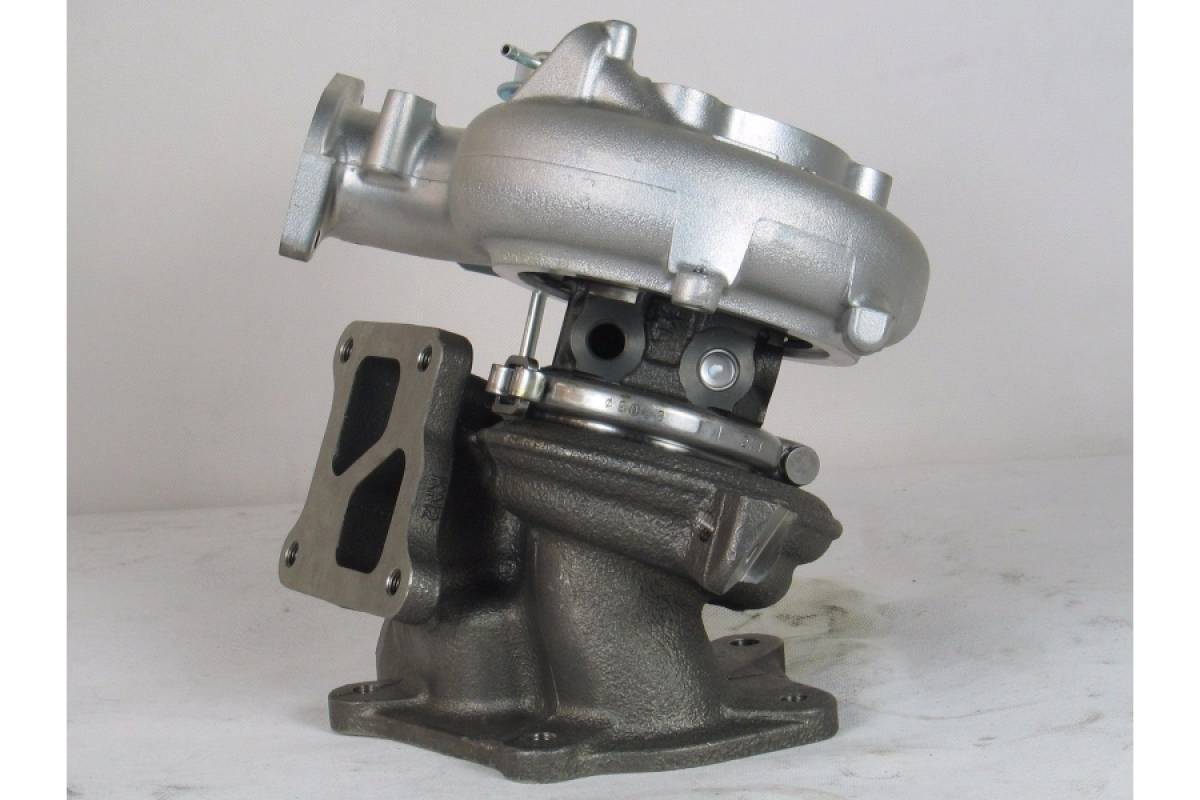

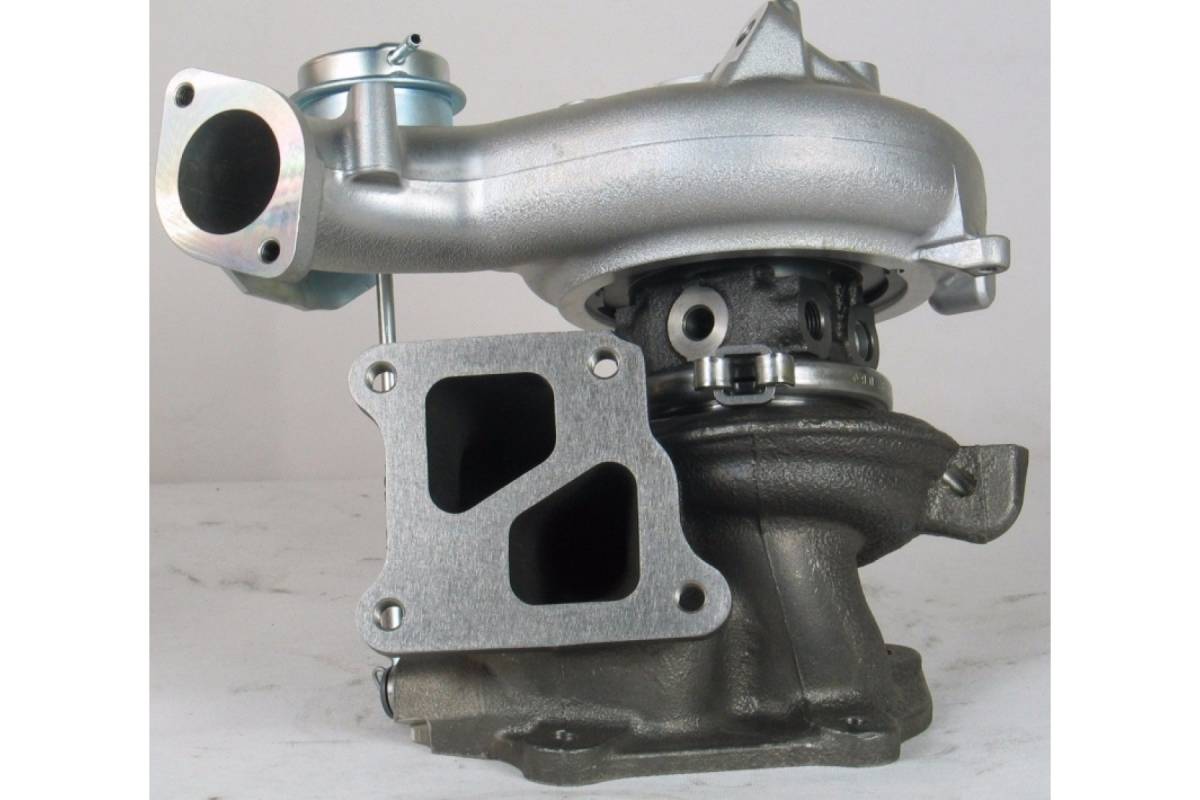

Full Race Stock Location MHI TF06-18K Performance Turbo Upgrade 49S36-07000

(Requires Part Number 49136-59500)

Manufactured to OE standards by Mitsubishi Heavy Industries (MHI), the TF06-18K is designed for an ideal blend of response and top-end power in the stock frame. The billet 18KX3RC compressor wheel utilizes the latest-generation blade aero with 7 primary blades and 7 splitter blades for a max flow rate of 54lb/min. The MHI high-pressure wastegate actuator comes pre-calibrated to 18psi. Mitsubishi's high-performance OEM+ bolt-on turbo upgrade for the Evolution X 4B11T will help you go faster without sacrificing quality and reliability.

18K COMPRESSOR SPECIFICATIONS

• Compressor Type: Forged-Milled Wheel (FMW) Billet
• Compressor Wheel OD (exducer): 75mm
• Compressor Wheel Inducer: 55.1mm
• Max Flow Rate: 54 lb/min
• Max Turbo Speed: 133krpm
• Compressor Housing: 3" hose coupler inlet, 2 bolt evoX outlet

TF06 TURBINE SPECIFICATIONS

• Turbine type: 9-blade TF06 Inconel 713C Turbine Wheel
• Turbine Wheel Inducer: 61.5mm
• Turbine Wheel Exducer: 54mm
