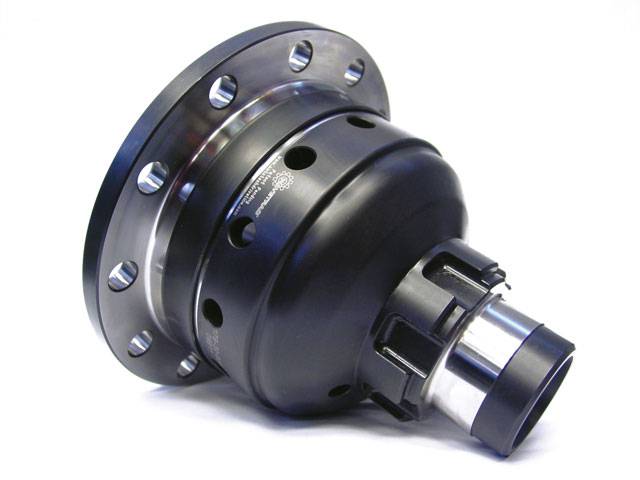

Acura Integra 1992-1993 GSR Wavetrac Limited Slip Differential

Wavetrac Limited Slip Differential

Innovative:
Patent pending Wavetrac design automatically improves grip in low traction conditions. This feature is truly innovative and unlike any other torque biasing diff design.

Customizable:
If desired, the diffs behavior can be altered in the field to suit your needs.

Superior Materials
9310 steel gears run in case-hardened billet steel bodies. ARP fasteners used throughout.

Maintenance Free
As supplied new, the Wavetrac differential will perform a lifetime of service without maintenance or rebuilds.

Limited LIFETIME Warranty:
All Wavetrac differentials include a transferable, Limited Lifetime Warranty.

Enhanced No-Load Bias Ratio via its Wave Design Center Pack

One of the known shortcomings of a typical torque biasing differential is its loss of drive (behaving much like an open diff) under zero or near-zero torque conditions (for example, when there is load applied through the drivetrain, either at vehicle stationary and/or transition from engine driving vehicle to engine braking and back).

The Wavetrac differential uses a patent pending design to improve grip in low traction conditions. Precisely engineered, converging/ diverging wave profiles are placed on one side gear and its mating preload hub. As the two side gears rotate relative to each other, each wave surface climbs the other, causing them to move apart. This imparts an increased normal force through the side gears, increasing the bias ratio as a function of load. This increase occurs automatically only when conditions find it necessary, and it reverts back to its nominal bias ratio quickly and seamlessly,

maintaining optimal drivability and performance at all times. Its like having two differentials in one: you get the benefit of a higher bias ratio when needed without detriment to the cars handling.

Heres something else you wont find in any other design:

The Wavetrac diffs behavior can be altered in the field to suit your needs. It comes standard with carbon-fiber bias plates for the best all around performance and lifetime durability. Interchangeable plates using materials with different friction coefficients to fine-tune the bias ratio are sold separately.

These bias plates provide a mechanism to tune the response of the differential as a function of applied torque load. The applied torque load manifests itself as an axial load from the differential pinions into the housing. This axial force is then considered a normal force into the friction plate, and as a function of the effective provide a resistive torque to the rotational motion of the differential pinions. The resistive torque will add to the resistance of relative rotation of all components within the differential. The resistive force, however, is non-uniform since it is a function of the axial load from the differential pinions. The unbalance of the resistive torque will manifest as non-uniform energy absorption within the differential causing a bias ratio.

Designed from a clean sheet, the new Wavetrac Differential brings current gear technology to the market. Internally, its gear tooth forms are optimized for strength and improved oil film retention over competitive designs. Our gear package is smaller, reducing overall mass, yet is more durable. Attention was also paid to the side gear/axle interface, putting as much material thickness as possible in this critical area - most important when power levels get high.

Each Wavetrac Differential is crafted from the highest quality materials available. The internal gears are made from high strength 9310 alloy steel. The diff bodies are machined from case hardened steel billet. To complete the package, every Wavetrac differential is built exclusively using high quality, high strength fasteners from ARP, the world leader in fastener technology.
