2012-2015 Honda Civic Si Hondata FlashPro FP-2012SI-US
All Hondata software is available for free download at hondata.com

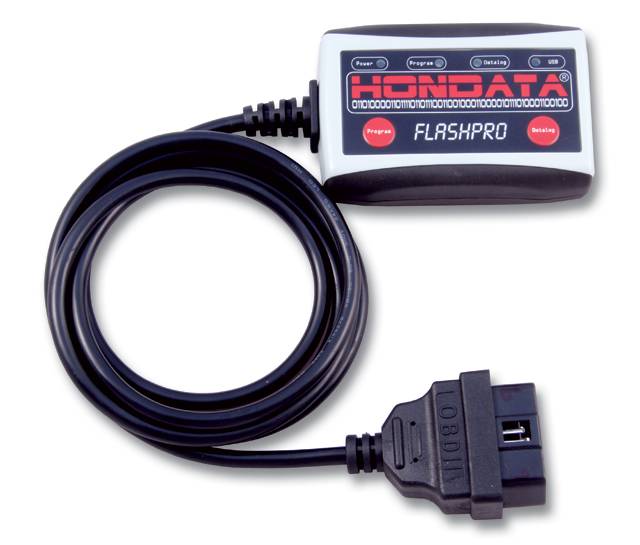

The FlashPro allows full user tuning and datalogging for the 2012+ Civic Si 2.4. It includes Windows based software called FlashPro Manager.
The FlashPro connects from your laptop's USB port to your vehicles diagnostic port to provide real time programming, a variety of calibrations and extensive datalogging capabilities.

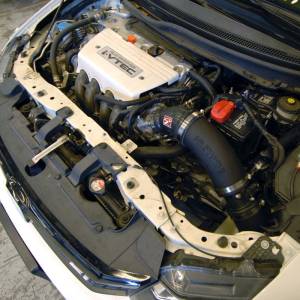

For confirmation the ECU can be located in the engine bay beside the battery.
PRODUCT FEATURES
- Programmable ECU interface
- Connects via OBDII diagnostic port
- USB 2.0 connection
- Works with Laptop or Desktop
- No ECU modification necessary
- Live tuning
- 20 hours on board datalogging memory
- FlashProManager Windows software
- Check and clear diagnostic codes
- Customizable laptop gauges
- Readiness codes and smog check status
- Dual calibration storage - upload from one of two calibrations stored in the FlashPro
2012 SI / Acura ILX tuning features
- Ignition, fuel, idle speed, table editing
- VTEC window
- MAP sensor based tuning
- Rev and launch limiters
- Map tracing & lambda overlay
- Choice of either AFM or MAP based fuel tuning
- Expanded fuel ignition and knock tables for forced induction
- 4 bar MAP sensor support (43 psi)
- Support for larger injectors
- Injector latency / dead time
- Individual cylinder fuel & ignition trim
- Individual cylinder knock control
- Starting calibrations for NA, forced induction & larger injectors
PRODUCT FITMENTS
Vehicle: 2012+ 2.4 Honda Civic Si
ECU Part Number: RX0-A03 through A012
FlashPro Part Number: FP-2012SI-US
Frequently Ask Questions
- What do I need to run the software?
Laptop or desktop
32 or 64 bit Windows XP, Vista, 7 or 8*
USB 2.0 port
Internet Access
* The software will also work on Intel based Macs running Bootcamp with the above specifications. Has been extensively tested and works well. Parallels and VMWare virtualization software has been tested with no problems found to date.
- Do I need to send my ECU to Hondata?
No. Your ECU does not need to be modified for FlashPro.
- Can it improve the rev hang?
Yes. Revs will drop sooner after gearchange.
- Are there base calibrations?
Yes, for injectors ranging from 270-1300cc.
- Do I need dyno tuning?
It shouldn't be necessary for common part combinations (intake, exhaust), but you still have the option of custom tuning if you wish to get a little more. Camshafts and race headers probably will need tuning to get the most of the them - it will depend on the manufacturer. Dyno tuning is highly recommended for forced induction.
- What about smog?
According to US and CA law the FlashPro is for off road use only. However, if you did smog with you would find the readiness codes supported and complete as long as your emissions systems are intact and working.
- Will this work on more than one vehicle?
The FlashPro is locked to one vehicle. It can be unlocked and transferred to another vehicle by returning the ECU to stock.
- Can I share the calibrations I make for my car?
Yes.
- Do I need the laptop in the vehicle to reflash the ECU?
No. The FlashPro can upload either with or without a laptop.
- So does that mean 1 unit Hondata FlashPro can only work with one ecu or car only? Which mean I can't buy one FlashPro and use it together with a few of my friend's Si/ILXs?
One ECU and vehicle at a time. You can unlock the FlashPro by returning the ECU to stock, and then transfer to another vehicle.
- Any option of immobilizer control?
The immobilizer can not be disabled. We've implemented a number of features designed to protect the owner of the vehicle from theft, and one of these is not to allow the immobilizer to be disabled. This is going to be much less of an issue than previous products because the ECU does not need to be removed / swapped.
-Will this support a 64-Bit Windows Vista?
Yes.
- Can it control nitrous?
No. However, you can at least control the ignition timing to make nitrous safer.
- Will dealers need a software license?
No. Every FlashPro will come with the full tuning software FlashProManager.
