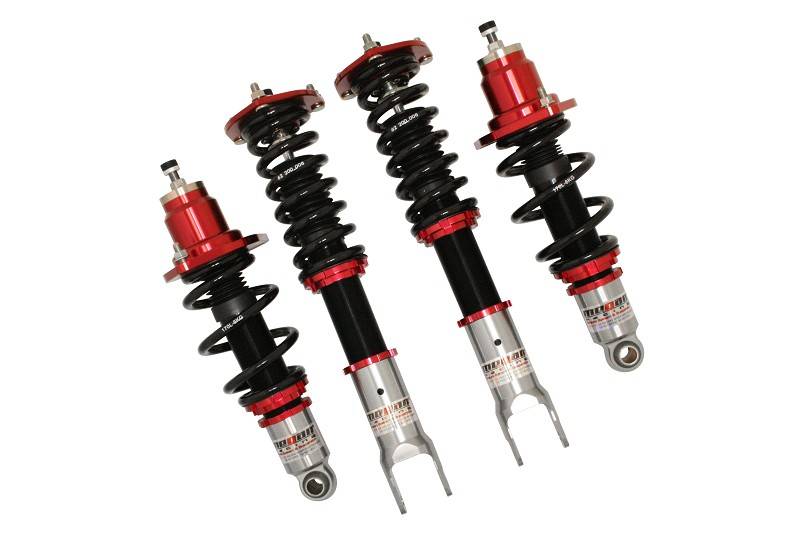

Megan Racing Coil-Over Dampers are the ultimate upgrade to your track or street car. Featuring 32 levels of damper force adjustment, separate spring perch height and shock length adjustment allowing you to retain full suspension stroke and to fine tune your suspension characteristics. These damper kits are then perfectly matched with front and rear Pillow Ball upper mounts, including camber plates integrated with the upper Pillow Ball mounts on strut-type suspension applications.
Compression and rebound settings are easily adjusted through a single damper adjustment knob which is built-in at the top of the damper mount for easy access. Adjustments are simple to tune according to your style of driving and desired comfort level whether you are a professional certified mechanic or an automotive enthusiast with amateur mechanical skills. All of our dampers are capable of handling a +2kg/mm or -2kg/mm change in spring rates to further tune your suspension to your desired handling characteristics.
Height adjustments are made with separate CNC-Machined locking spring perches for accuracy and smooth adjustment with separate damper shock length adjustment to retain full-stroke and allows for precision suspension tuning. The wide range of allowable ride-height adjustment allows for a conservative drop to more aggressive ride heights for an aggressive stance, or to fine tune your suspension for the circuit to gain full potential of your vehicle's handling capabilities.
On applications utilizing strut-type suspension designs, the Megan Racing Damper Kits come with fully adjustable Pillow-Ball upper mount camber plates to easily tune and adjust your camber, giving you a competitive edge over other suspension setups. This allows you to tune your car for any ride height and still adjust camber to improve handling, vehicle predictability and tire wear, which is a great benefit both on the race-track and on the street.
The quality and durability of the Megan Racing Damper kits are unmatched. Made of extremely durable Steel and featuring springs that are constructed of SAE-9254 Cold-Wound Steel which are then tested over 500,000 times by compression inspection. With deformation less than 5% and high strength sophisticated surface coating, we stand by our product with our strong warranty.
SPECIFICATIONS & FEATURES:
APPLICATION: Mazda RX8 2003-2008
SPRING RATES:
F: 62mm ID; 200mm length; 8 kg/mm
R: 62mm ID; 160mm length; 6 kg/mm
DAMPER SPECS:
F: 115mm stroke; 240mm length; A2 valving code
R: 105mm stroke; 190mm length; A1 valving code
- 32 Levels of Damper Force Adjustment
- Pillow Ball Upper Mounts
- Rubber Dust Boots
- Adjustable Ride Height
- Aggressive Spring Rates
- Single-Cylinder Design
- Aluminum Brackets
32 Levels of Adjustment:
1-8: Suggested for track use.
9-16: Suggested for mountain/aggressive use.
17-32: Suggested for common street use.
- All coil-over damper kits come with 1 year manufacturer-defect warranty.
- All Hardware is Included
MSRP: $999.00
NOTE: [11/2011] The included instruction diagram shows an extra "upper mounting bracket" for the rear suspension, which would mount to the chassis-- however the most recent versions do not include this extra bracket as it is not necessary. Recent versions do not include this bracket and the diagrams in our instruction manuals will be revised accordingly.
All Megan Racing products are deemed for "off-road use only"-- please reference your local state vehicle code regulations regarding imposed modification laws.
