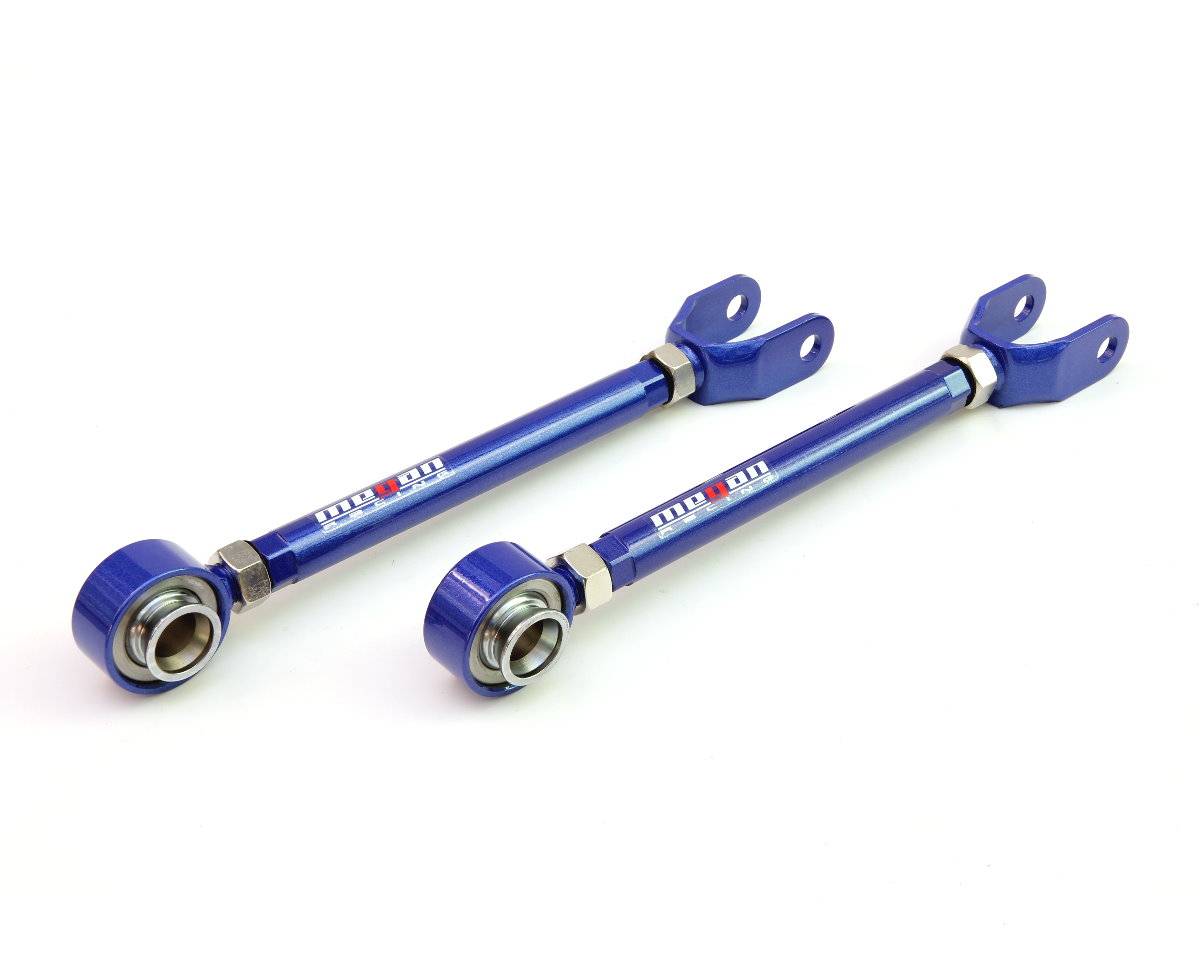

2003-2007 Infiniti G35 Megan Racing Rear Radius Arms

2003-2007 Infiniti G35 Megan Racing Rear Radius Arms

Megan Racing radius arms are designed to fix any issues caused when you lower your vehicle, as the toe and camber in the rear of your vehicle will change drastically. These radius arms help you overcome this change in toe and camber. Featuring easier accessibility to the adjustment points, and allowing a wider range of adjustments, these radius arms are a great replacement for those who wish to lower their car and achieve proper alignment. These arms are constructed of a high strength steel, and powder coated for durability and resistance to any extreme conditions.

Measurements: (assuming 5/8" thread engagement on both ends, 5/8" is the ID of the threaded stud of the outer ends)

• Minimum Arm Length (bolt-hole to bolt-hole): 12.25"
• Maximum Arm Length (bolt-hole to bolt-hole): 14 1/16"
• Inner Eye Bolt (Inner Diameter): 3/4" ID on one side, tapers twice to 15/16" ID; 1 5/8" width of rod end.
• Outer Bolt-Hole (Inner Diameter): 1/2" ID; 1 5/8" width
• Outer end thread pitch: M16x1.50

Specifications:

• Allows adjustment to rear caster
• Minimize rear wheel hop during braking or acceleration
• Powder coated for maximum durability
• High strength steel construction

We do not recommend toe changes to be made with this arm. Typically when the chassis is lowered, and camber is reduced, toe in adjustment becomes limited and will remain limited unless the rear lower arms are changed as well (MRS-NS-0321). This requires a true-coilover setup to replace the spring-bucket which is the limitation. Some toe adjustment may be done without the Adjustable Rear Lower Arms if the eccentric bolt is retained on the spring bucket arm, however that has its caveats with the retention of the eccentric bolts instead of replacing them with lockout bolts.
