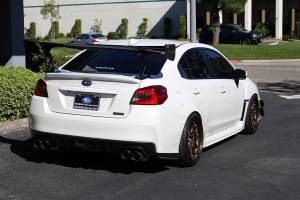

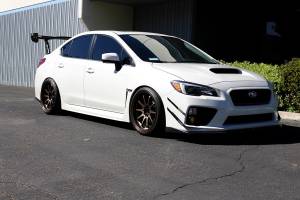

2015+ Subaru WRX and STI APR Spec Rear Wing (Trunk Edge Mounts)

APR Spec Rear Wing (Trunk Edge Mounts)

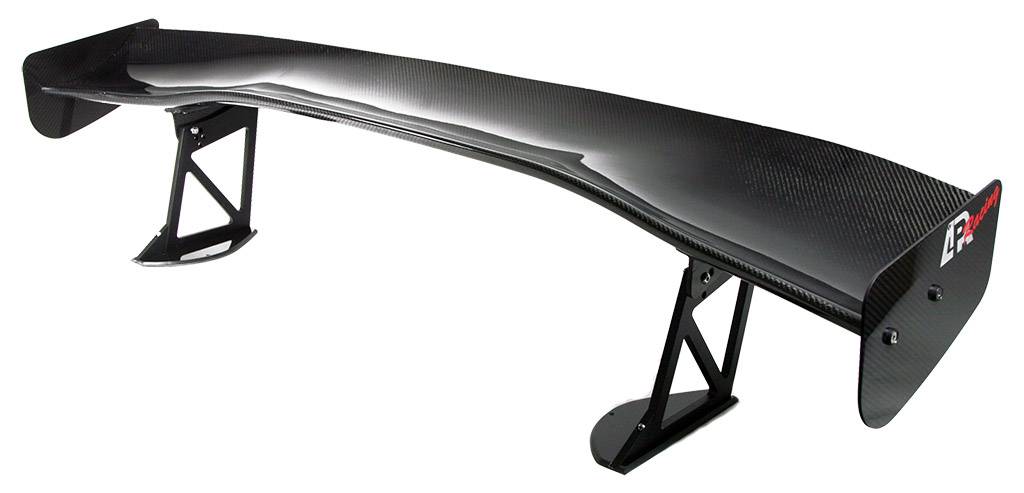

Spanning 67 inches over its optimized 3D airfoil shape, the APR Performance GTC-300 Adjustable Wing supplies maximum downforce in sports and touring car applications.

FEATURES

The APR Performance GTC-300 Adjustable Wing features a 3D airfoil shape that is designed to produce balanced downforce across its span on sports and touring car applications.

BENEFITS

• Angle adjustment holes allow for easy tuning of downforce
• Reinforced pre-preg carbon fiber withstands extreme loads
• Interchangeable side plates help to further tune downforce levels

SPECIFICATIONS

Pattern: 2x2 twill weave
Material: Pre-preg carbon fiber, 3K
Coating: UV-stable clear coat
Wing Span: 67" or 61" w/ variable Angle-of-Attack (AOA) (center section vs outer section angle difference: 15 degrees)
Hardware: Stainless-steel machine screws, washers, and nuts

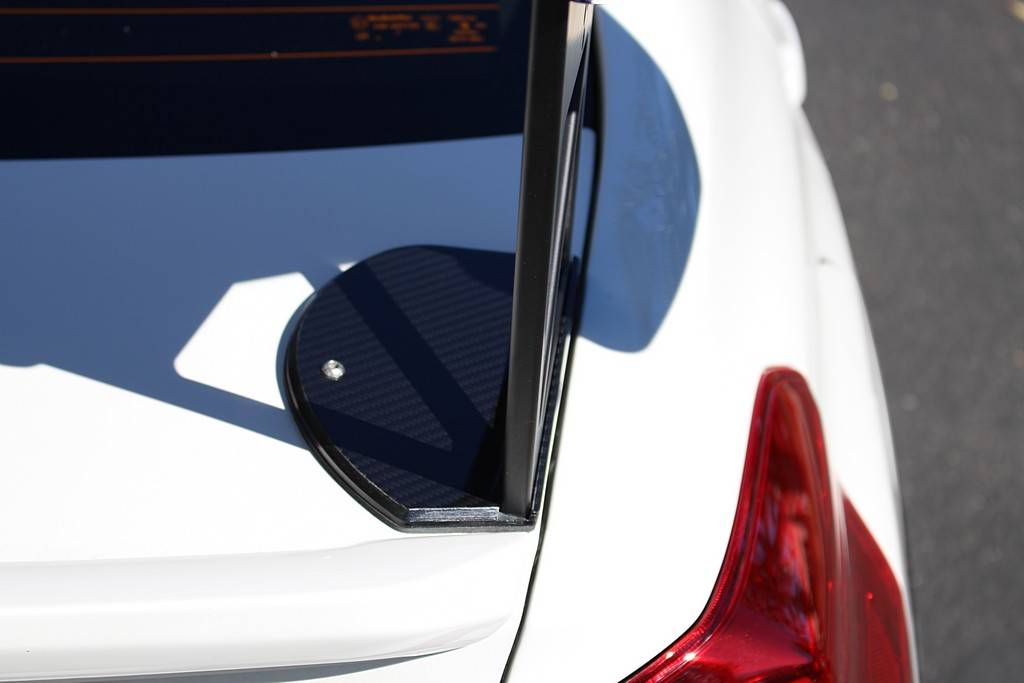

Mounting: 6061 billet aluminum brackets/pedestals with application-specific bottom mounting bases

Each GTC Series airfoil is composed of lightweight and durable pre-preg carbon fiber composite materials for superior strength and low weight

Aerodynamically-tuned side plates (aka end plates), included with every GTC Series Adjustable Wing, are critical components that help to ensure consistent airflow across the full span of the airfoil.

Supporting the airfoils are 10mm "aircraft grade" 6061 billet aluminum pedestals that come in a flat black powder coat finish.

Computational Fluid Dynamics (CFD)

Modeled in 3D and validated using Computational Fluid Dynamics (CFD), the APR Performance GTC-500 Adjustable Wing is designed to adapt to a variety of widebody sports and touring car applications.

(4~5 days made to order)
