2015+ Subaru STI Mishimoto Performance Aluminum Radiator

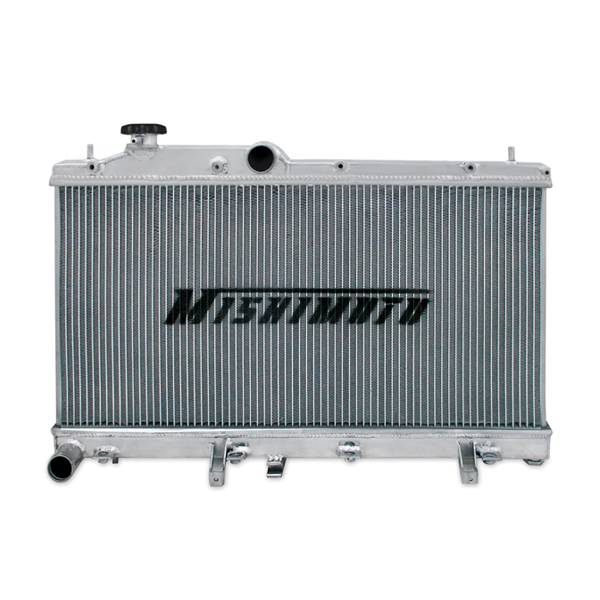

Mishimoto Performance Aluminum Radiator

• Direct fit for the 2008–2014 Subaru WRX and 2008–2015 Subaru STi
• Full aluminum construction including durable, TIG-welded end tanks
• Features a two-row, 1.65" thick, efficient brazed aluminum core
• Increased fluid capacity and optimal heat dissipation
• Provides efficient temperature reduction for use on the street, track, rallycross, or autocross course
• Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
• Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• Mishimoto Lifetime Warranty

OVERALL SIZE
28" x 21.8" x 2.15"

CORE SIZE
13.39" x 27.08"

ROWS
2

INLET
1.54"

OUTLET
1.54"

CORE THICKNESS
1.65"

TANK WALL THICKNESS
.08"

FILL NECK
1.25"

DRAIN PLUG THREAD SIZE
(M16) .06"

DRAIN PLUG THREAD LENGTH
.047"

PURCHASE INCLUDES
Mishimoto Radiator
Mishimoto Radiator Cap
Overflow Nipples - 2
Magnetic Drain Plug
Mishimoto Lifetime Warranty

ENGINE CODES
EJ255
EJ257

CHASSIS CODES
GE
GH

DPI
13091/13093

NOTE
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto transmission cooler (P/N: MMTC-U)

ALSO FITS

08–14 WRX
08–15 STI
05 Outback
05–06 Legacy
06 Outback XT
06–09 Legacy GT Spec.B
07–09 Legacy GT Limited
07–09 Outback XT Limited
08 Outback 2.5 XT
08 Legacy GT
09 Forester XT
09–10 Impreza 2.5 GT
09–10 Forester XT Limited
10+ WRX Limited
10+ WRX Premium
10+ Forester XT Premium
10 STI Special Edition
11 STI Limited
11 Forester XT Touring

NOTE

Use small fitting for:
08–09 WRX
08–15 STI

Use large fitting for:
10+ WRX
05–09 Legacy GT
06–09 Legacy GT SPEC-B
05–09 Outback XT
09+ Forester XT

CAUTION
It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
