2015+ Subaru STI Mishimoto Front-Mount Intercooler - Silver Cooler w/ Air Intake

Subaru STI Front-Mount Intercooler, 2015+

Here at Mishimoto, we've decided to expand our line of 2015 STI products. Designed for applications that demand the greatest airflow and cooling capabilities, the Mishimoto 2015 STI Front-Mount Intercooler Kit will provide your 2015 WRX STI with the ability to make the most horsepower and torque possible. This 2015 STI intercooler kit was designed with the same 28" intercooler as our 2015 WRX front-mount intercooler kit. The massive 3.5" thick core will support up to 600 whp or 30 PSI of boost pressure! Smooth cast end tanks make for uninterrupted airflow through the cooler. This results in an intercooler that provides the best airflow and cooling capabilities without excessive pressure drops. Your fully built rally car will have no problem keeping a dense, cold, intake charge with this highly engineered STI intercooler kit.

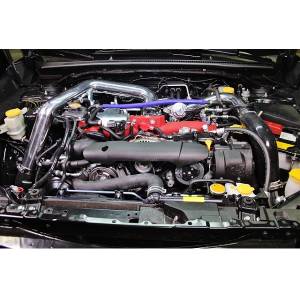

The Mishimoto 2015 STI front-mount intercooler kit features mandrel-bent aluminum piping for optimum airflow. The STI front-mount intercooler pipe routing maintains your factory fog lights, so you can see on those dark, foggy rally stages. Everything you need is included in the STI front-mount intercooler kit to make for a worry-free installation. No cutting of the front bumper or other modifications are required with the application-specific crash bar that positions the intercooler perfectly in the lower grill of the front bumper where it will receive optimal airflow.

The 2015 STI intercooler kit includes two different turbo outlet hoses, just in case you have an upgraded turbo with a larger compressor outlet. And who doesn’t want an upgraded turbo? Did I hear a blow-off valve on your car? The STI front-mount kit has that covered too. The piping works with the stock bypass valve or aftermarket blow-off valves! This 2015 STI intercooler is backed by the Mishimoto Lifetime Warranty to ensure superior craftsmanship!

Features and Benefits

• Direct fit for the 2015+ Subaru STI
• 3.5" thick intercooler design optimized for maximum flow and rated to 600 whp
• No modification to front bumper and retains stock fog lights
• Includes black powder coated steel, tubular crash bar
• Optimal core design for maximum cooling efficiency with minimal pressure drop
• Includes two different turbo outlet hoses for stock or aftermarket turbos
• Works with stock bypass valve or aftermarket blow-off valve
• Intercooler available in Sleek Silver, Stealth Black, and Bold Gold
• Mishimoto Lifetime Warranty

Mishimoto, the world leader in performance cooling products, is proud to introduce the intercooler kit for the 2015+ Subaru STI....

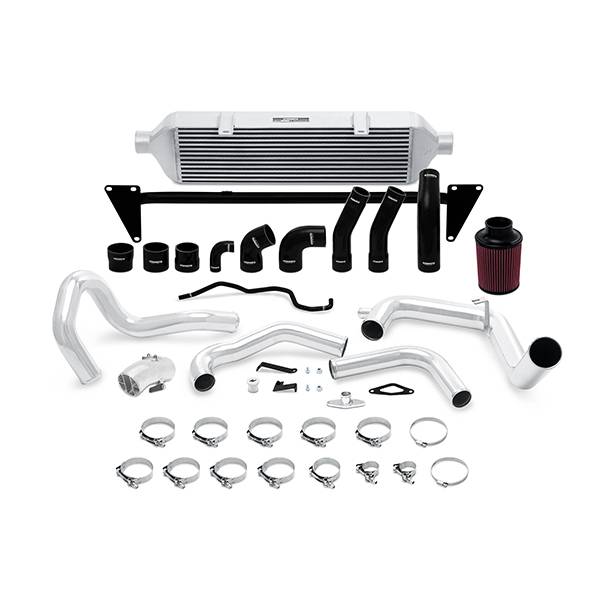

PURCHASE INCLUDES
(1) Bar-and-Plate Intercooler
(1) Steel Crash Bar w/ Mounting Hardware
(2) Hot Side Intercooler Pipes
(2) Cold Side Intercooler Pipes
(1) BPV Flange Adapter
(1) Turbo to Hot Pipe Coupler (for stock turbo)
(1) Turbo to Hot Pipe Coupler (for aftermarket turbo)
(1) 2.25" – 2.5" Silicone Transition Hose
(1) 2.5" – 2.75" Transition Coupler
(1) 2.75" Straight Coupler
(2) 2.5" – 2.75" Intercooler to Pipe Hoses
(1) BPV Recirculation Hose
(2) 1.5" T-Bolt Clamps
(1) 2.00" T-Bolt Clamp
(2) 2.5" T-Bolt Clamps
(4) 2.75" T-Bolt Clamps
(5) 3" T-Bolt Clamps
(1) Bypass Valve Gasket
(2) 6" of Thermal Wrap
(1) Sound Symposer Plug

OPTIONAL AIR INTAKE KIT
(1) Oiled Filter
(1) Aluminum Intake Pipe
(1) 3.00" – 2.75" Transition Coupler
(2) 3" Worm Gear Clamps
(1) Application–Specific Pipe Mounting Bracket

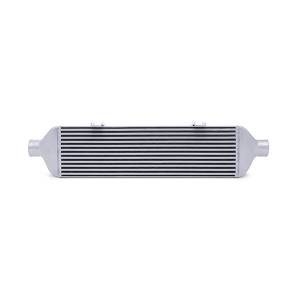

COOLER OVERALL SIZE
37.7" x 8.6" x 5.4"

COOLER CORE SIZE
28" x 8.05" x 3.5"

COOLER CONSTRUCTION
Bar-and-Plate with Cast End Tanks

COOLER INLET / OUTLET
2.45" I.D. / 2.75" O.D.

COOLER WEIGHT
25 lbs

COOLER TANK WALL THICKNESS
3.5mm

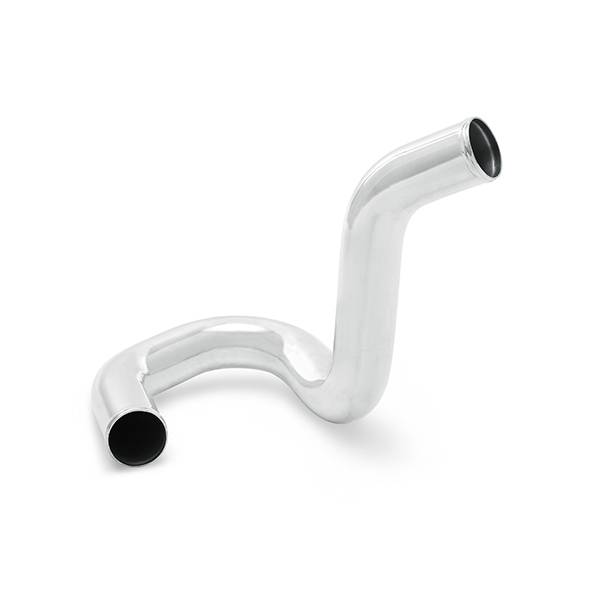

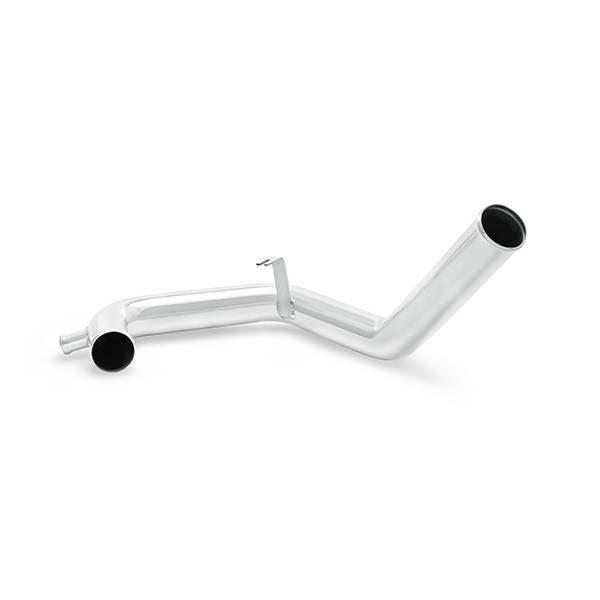

HOT-SIDE INTERCOOLER PIPE SPECS
– Made from Polished Mandrel-Bent Aluminum

TURBO TO HOT-SIDE HOSE SPECS (FOR STOCK TURBO)
– 1.875" I.D. / 2.20" O.D. – on turbo outlet
– 5mm Hose Thickness
– Withstands up to 400°f (204°c) temps
– Fits on Turbos with 1.97” (50mm) Maximum Compressor Outlet Size

TURBO TO HOT-SIDE HOSE SPECS (FOR AFTERMARKET TURBO)
– 2.00" I.D. / 2.40" O.D. – on turbo outlet
– 5mm Hose Thickness
– Withstands up to 400°f (204°c) temps
– Fits on Turbos with 2.25" (57mm) Maximum Compressor Outlet Size INTERCOOLER PIPE - THROTTLE BODY COUPLER SPECS
– 3.25" Length
– 2.75" I.D.
– 3.00" O.D.
– 4mm Thick

BPV HOSE SPECS
– Application-Specific Bend for this Kit
– 1.25" I.D.
– 1.50" O.D.
– 4mm Thick

CRASH BAR SPECS
– Tubular Steel Construction with Black Powdercoat
– Application-Specific Mounting Holes
– 6.5 lbs

OPTIONAL AIR INTAKE SPECS
Pipe Diameter: 3.00"
Pipe Material: aluminum
Oiled Filter: 38 g of Oil on Filter

ENGINE CODES
EJ257

CHASSIS CODES
VA

NOTE
This FMIC kit is not compatible with the stock intake.

Filter re-oil is not included with the lifetime warranty.

Mishimoto recommends that this intercooler kit, with or without the optional air intake, is not used with the stock ECU programming. It is highly recommended that the customer is able to retune the vehicle’s ECU after installing the intercooler kit. Power gains will vary depending on the size of the turbo, exhaust system, fuel system, and type of ECU tune that is applied to the vehicle.

This kit is rated for approximately 600 whp, or 30 psi of turbo boost. Exceeding these horsepower or pressure limits may require a custom-sized front-mount intercooler.

INSTALLATION TORQUE SPECS
27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
