1994-2001 Acura Integra Conversion Billet Engine Mount Kit, Aluminum, silver, 75A BLK, Bushing

Conversion Billet Engine Mount Kit for 1992-1995 Honda Civic (EG/EH/EJ) & 1994-2001 Acura Integra (DC)
Designed to fit the stock manual or automatic Civic EG/EH/EJ & Integra DC chassis when converting to H-Series engines with manual transmission.

- Includes Hardware
- Works with Factory AC & Power Steering
- Unique No-Tear Vibration Minimizing Bushings
- Optional Bushing Stiffness'
- Positions the Engine With No Axle Bind
- Bolt-On
- CAD/CAM Designed
- Stress Analyzed
- Lifetime Warranty

IMPORTANT:
- In order to use the engine mount from this kit you will need to use the 92-01 Prelude H-Series engine timing belt post mount. Honda Part Number: 11910-P13-000
-This swap will need the T-Bracket from either the 90-93 Accord DX/LX (EX will not work) or the 92-96 Prelude V6.

Alternatively you can purchase this T-Bracket here:
90-93 ACCORD / 92-96 PRELUDE REPLACEMENT REAR MOUNTING BRACKET - 59630

It is strongly recommended that all installs be done by a mechanic or automotive specialist.
Mounts CAN NOT be returned or swapped out after they have been bolted down (revealing bolt impressions).

PLEASE MAKE SURE THIS KIT FITS YOUR VEHICLE BEFORE BOLTING THEM IN PLACE.

Innovative Engine Mounts are built for performance driving.
Although Innovative's bushings are made to absorb engine vibration, you may still notice slight vibration depending on your engine's series and HP.
Innovative Mounts removes the dampening oil containers harbored by OEM/Stock mounts.
By switching to stiffer mounts without the fluid reduces wheel hop and increases driving response.

Drivetrain options:
Right Axle - 90-93 Integra
You must use a Prelude/Accord inner CV joint in order for the axle to lock into the transmission.
The inner spline shaft is slightly longer for the Prelude/Accord than the Integra.
A 90-93 Integra shaft and outer CV will work with the prelude inner.
Left Axle - 1990 Manual Accord Intermediate Shaft Or Alternatively:
Left & Right Axles - 90-93 Integra (with Prelude inner cv joint on the right axle)

Weight: 16lbs

This Kit Includes

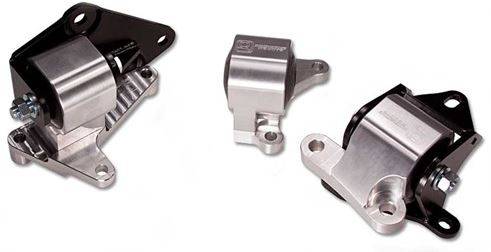

1) Engine Block Mount - B29510
1) Transmission Mount - B29520
1) Transmission Mounting Bracket - 29520-SB
1) 12 x 1.25 x 100
2) 10 x 1.25 x 150
2) 12mm Washers
4) 10mm Washers
1) 12mm Nut
2) 10mm Nuts
1) Rear Engine Mount - B29530

NOTE: Most items are special ordered and may take up to 2-3 weeks
